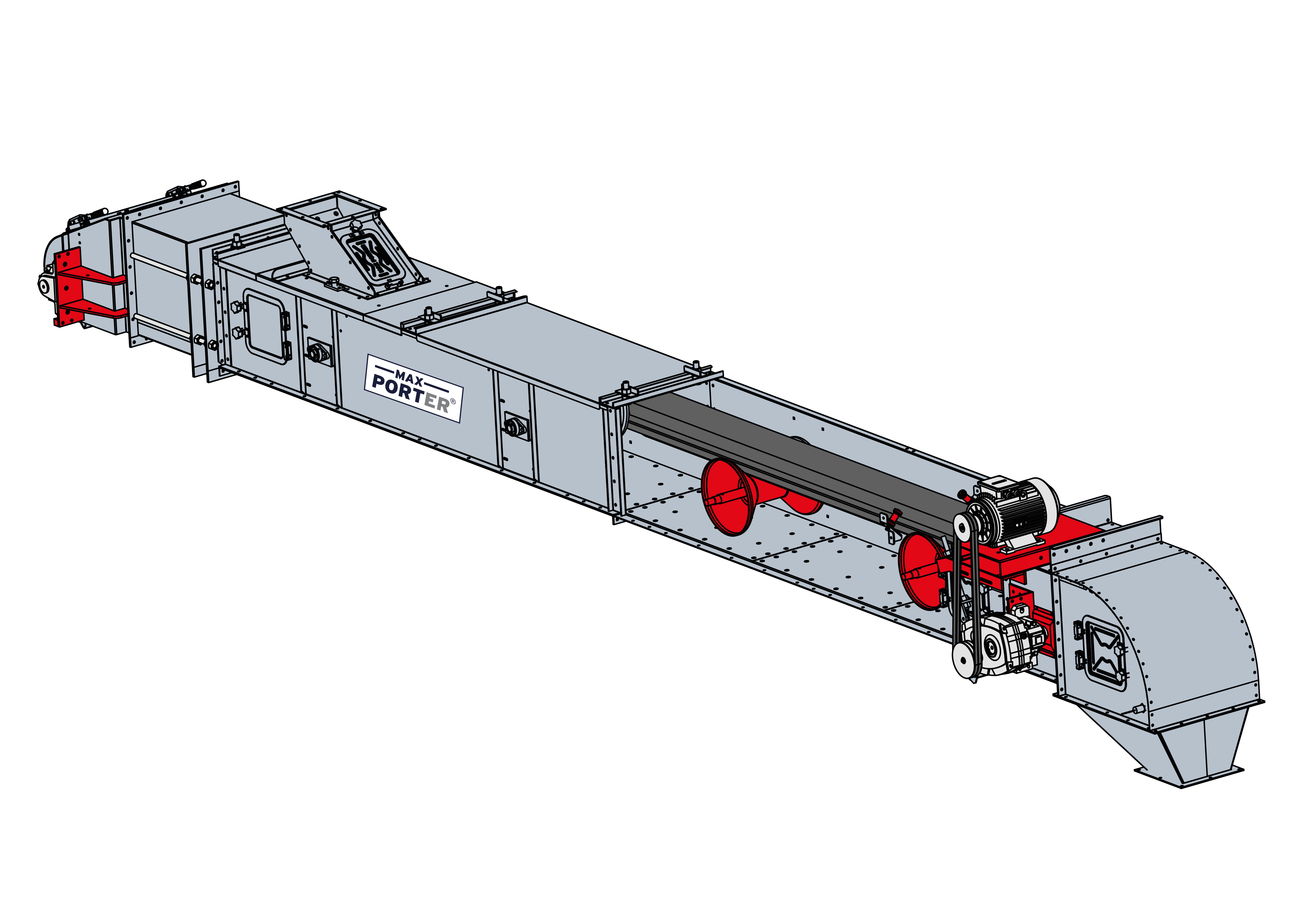

K Model - Belt Conveyor

K series belt conveyors provide safer and more precise transport of your products horizontally and inclined. K Seril belt conveyor carries different products and capacities in the speed range (0.5 - 3.5m/s) thanks to its conical roller structure and heavy construction.

Resmi Görüntüle
  • Daha Fazlası

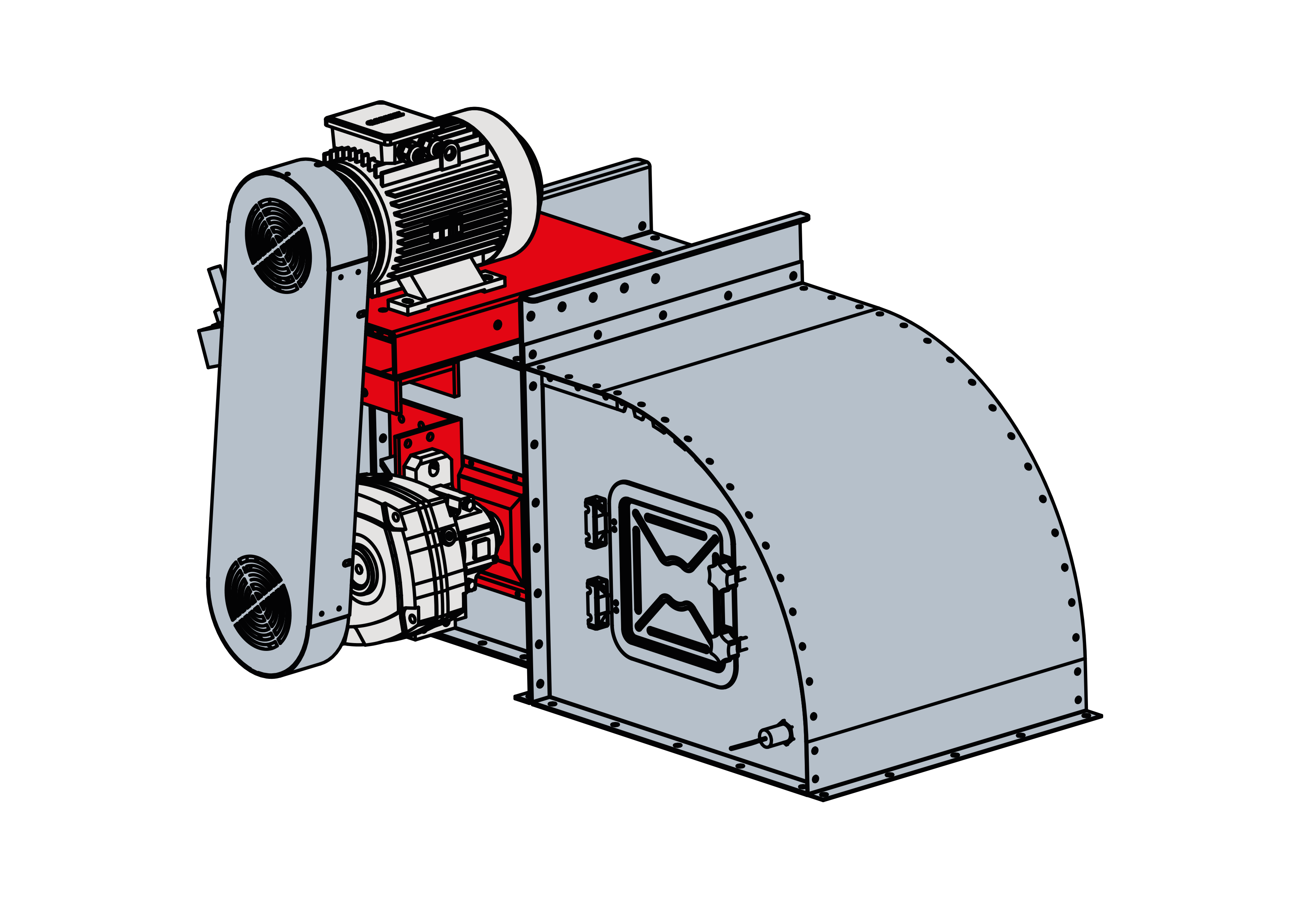

    Drive Head

    Produced from Galvanized Steel, the drive head has a strong structure supported by special profiles.
    The drive head is driven both as a belt pulley and as a couple.
    Our drive motors are offered with different Hz and Voltage options according to demand.

    Close
  • More

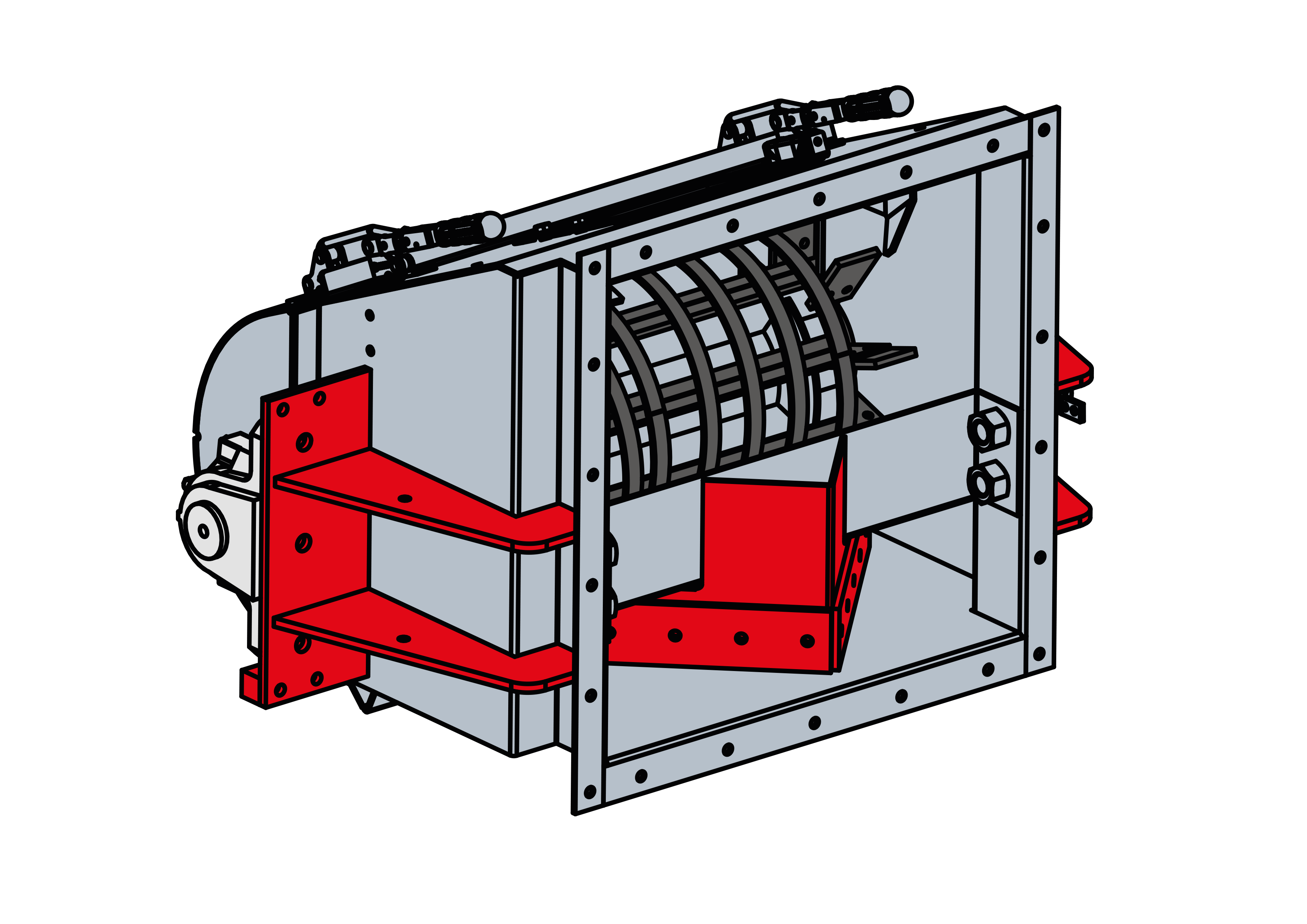

    Wanderer Head

    With the special palletized drum structure in our idler heads made of steel sheet, it takes the product particles in the conveyor back onto the band and includes them in the flow.
    Band tensioning settings are fast and practical.

    Close
  • More

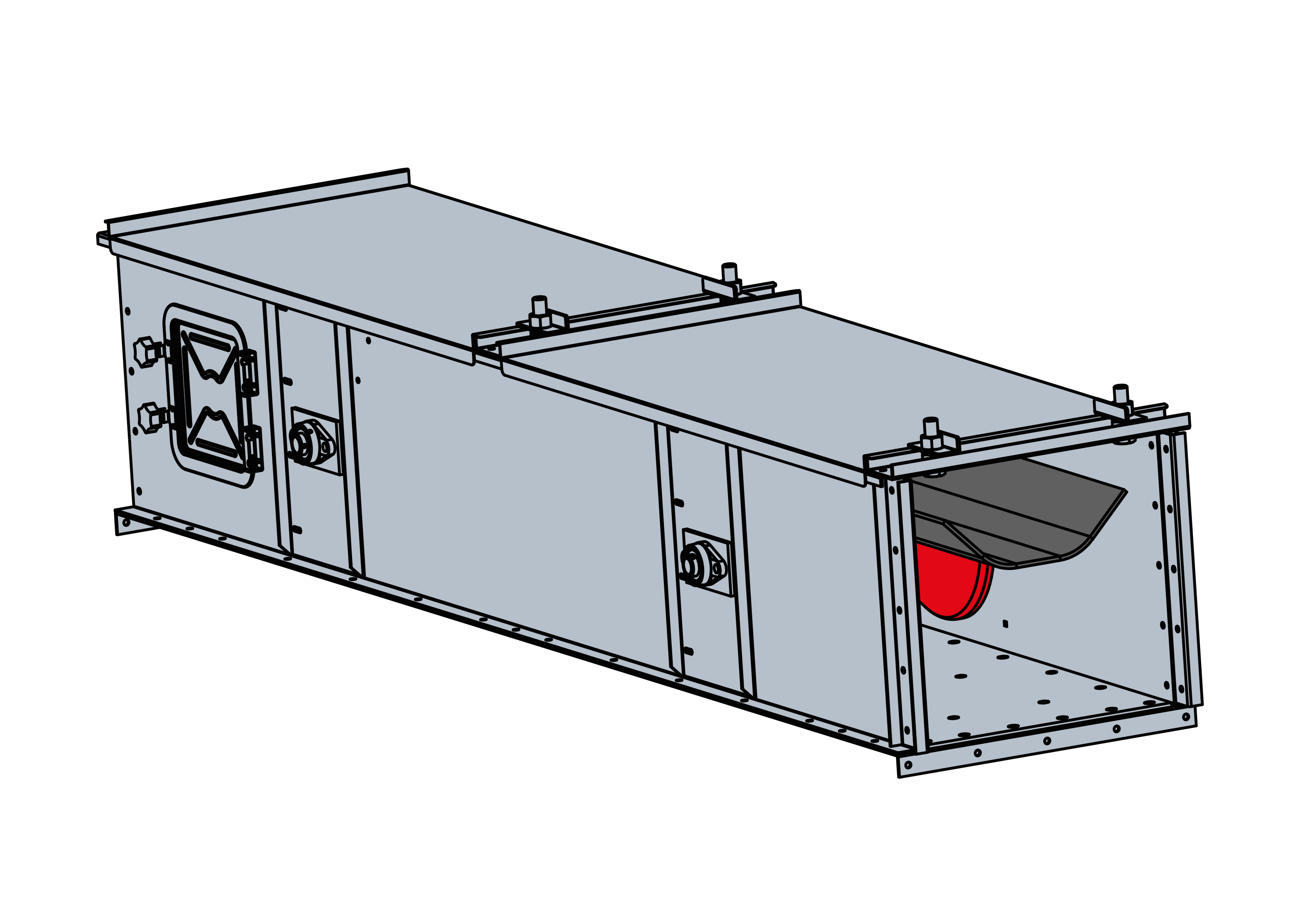

    Till

    Our modular safes made of galvanized steel provide ease of maintenance and technical service.
    It is suitable for use in indoor and outdoor conditions.

    Close
  • More

    Belt

    Antistatic rubber and court cloth tapes are used as standard. Band selections with different features are also offered according to the product and demand.

    Close
Capacity:

K series belt conveyors have different models and product options from 30 t/h capacity to 1200 t/h capacity.

Structural Feature:

All of the Y series conveyors are manufactured from galvanized sheet metal and are all bolted and nut-connected. It has a long service life. The grains that fall on the pouring belt during the transportation of the grains are reloaded onto the product conveyor belt thanks to the mechanism in the idle part.

Preferred Reasons:
  • It saves electricity thanks to its low motor power.
  • Thanks to the antistatic UHMW and conical rollers on the sole, it provides less wear and has a long service life.
  • Can be used inclined.
  • Different capacity options are available.
  • Due to its closed structure, it can be used easily in open areas and has been specially designed against water tightness.
  • It has a gasketed sight cover.
  • Idler guard is completely dismountable for cleaning and maintenance.
  • UHMW seals are attached to the places where the drive and idler drum shafts pass and dust entry is prevented.
  • Renewable rubber attached to the paddles located under the inlet chambers.
  • It uses a drum that can clean the material remaining in the idle part by itself.

Technicial Specifications

You can reach the capacity table of the product by clicking the letters in the picture.
K Model Belt Conveyor Dimensions
Swipe to see the rest of the table.
MODEL A B C D F Min F Max
BKK - 45 610 533 1016 3000 1180 1680
BKK - 60 760 533 1016 3000 1180 1680
BKK - 75 890 685 1016 3000 1270 1727
BKK - 90 1050 685 1016 3000 1270 1680
BKK - 105 1190 685 1016 3000 1270 1727
K Model Belt Conveyor Capacity Table
  • Format
    • Table Format
Swipe to see the rest of the table.
MODEL B. Speed
(m/sn)
0,5 1 1,5 1,8 2 2,3 2,5 3 3,5
BKK - 45 39 78 117 130 156 176 195 234 273
BKK - 60 72 143 215 260 286 325 358 429 501
BKK - 75 117 234 351 416 468 520 585 702 819
BKK - 90 169 338 455 585 650 748 845 975 1170
BKK - 105 195 416 650 780 878 975 1105 1300 1560
Our Capacity Unit is m³/h. taken as.
Diameters found in the table are indicated as drum diameter.
Dimensions are given in mm.
Maxporter reserves the right to change the technical specifications.
The x distance between the Inlet and the Discharge chamber is variable according to the project.
