Channel Type Aeration

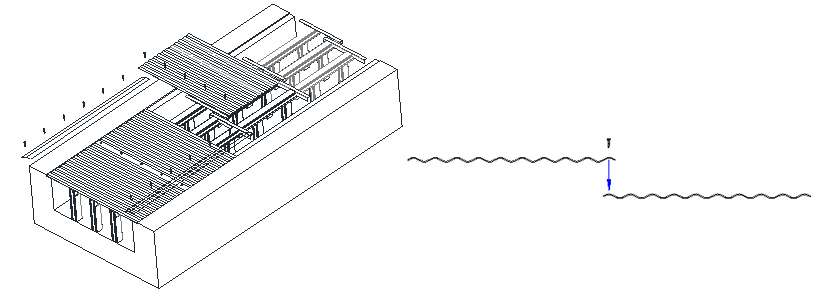

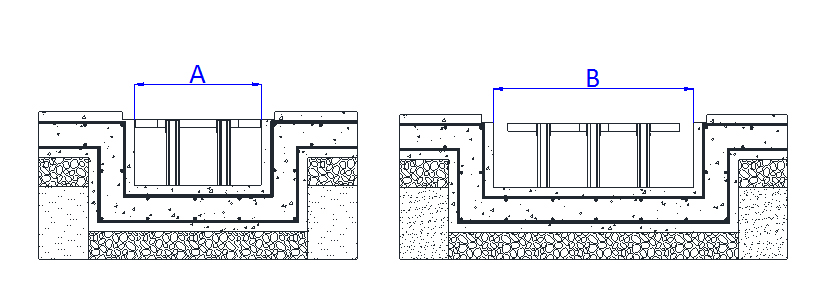

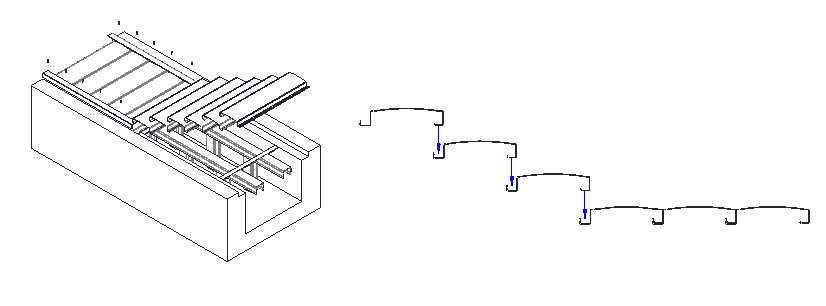

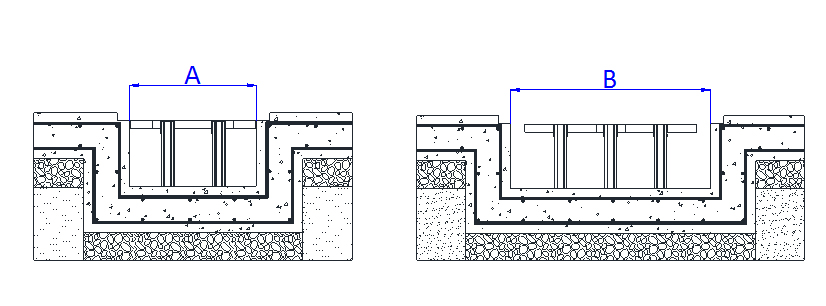

The channel type ventilation system performs its function when the air pressed into the channel passes through the grids and reaches the product after it is closed with the ventilation grids, which are mounted on the concrete channels that have been previously opened on the bottom of the silo.

Offers a variety of ventilation grid designs to meet the required ventilation surface area for your grain type.

Ventilation system elements made of galvanized sheet are resistant to corrosion and offer long material life.

The ventilation has a locking system that reduces floor movement and supports overload conditions.

Since the Ventilation Grids are locked, they provide easire assembly, and it is easy to clean. The ventilation system support legs are designed to withstand the maximum load pressure.

Narrow Hole Type Ventilation Grid
The narrow hole type ventilation grid is the most powerful grid available. Ideal for high ring silos. Narrow-hole type grid is produced in 90 mm width for more durable usage on the ground. Narrow-hole type grid with a hole diameter of 2 mm; It is used for aeration of products such as wheat, barley and corn.
Stripe Type Locked Aeration Grid
Stripe Type is manufactured in 180mm width. It is possible to ventilate small grain grains such as canola by stripe type with an opening of 1,3mm. Stripe Type grid is designed according to the air opening rate.
Perforated Type Locked Ventilation Grid
Perforated Type is manufactured in 180mm width. It is possible to aerate the grains such as wheat, barley, corn by perforated type with a diameter of 2 mm. Perforated Type grid is designed according to the air opening rate.
Heavy Duty Type Locked Aeration Grid
Mysilo Heavy Duty Perforated Plates are mostly designed for usage in horizontal warehouses.
M Type Aeration Support Leg
M type aeration support leg is easy to install and maintain due to its locked structure.
The support legs, manufactured by forming the galvanized sheet with the cold forming method, are extremely durable.
C Type Aeration Support Leg
Mysilo C type aeration support leg is mounted on the perforated and stripe type aeration grid.
Locked sections prevent any motion during assembly and loading. C type support leg designed specially to increase air permability.
The support legs, manufactured by forming the galvanized sheet with the cold forming method, are extremely durable.
K Type Aeration Support Leg
Mysilo K type aeration support leg is mounted on the perforated and stripe type aeration grid.
The design of the K type support leg offers the perfect solution for more air flow. It is mostly preferred in silos with high ring.

Technical Specifications

Capacity Charts
